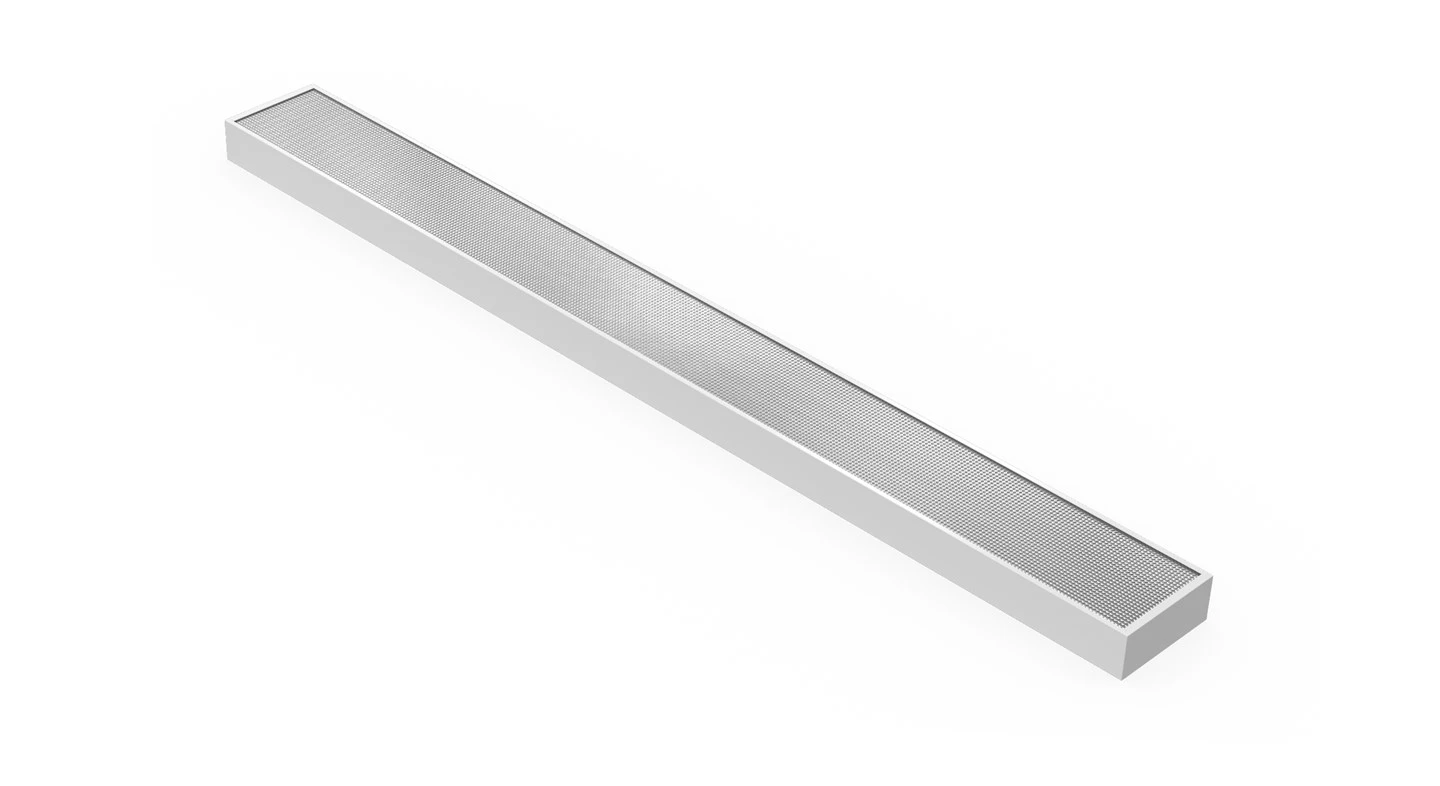

Brighton UGR svjetlo letvica

Brighton UGR Batten Light

Brighton-Batten2

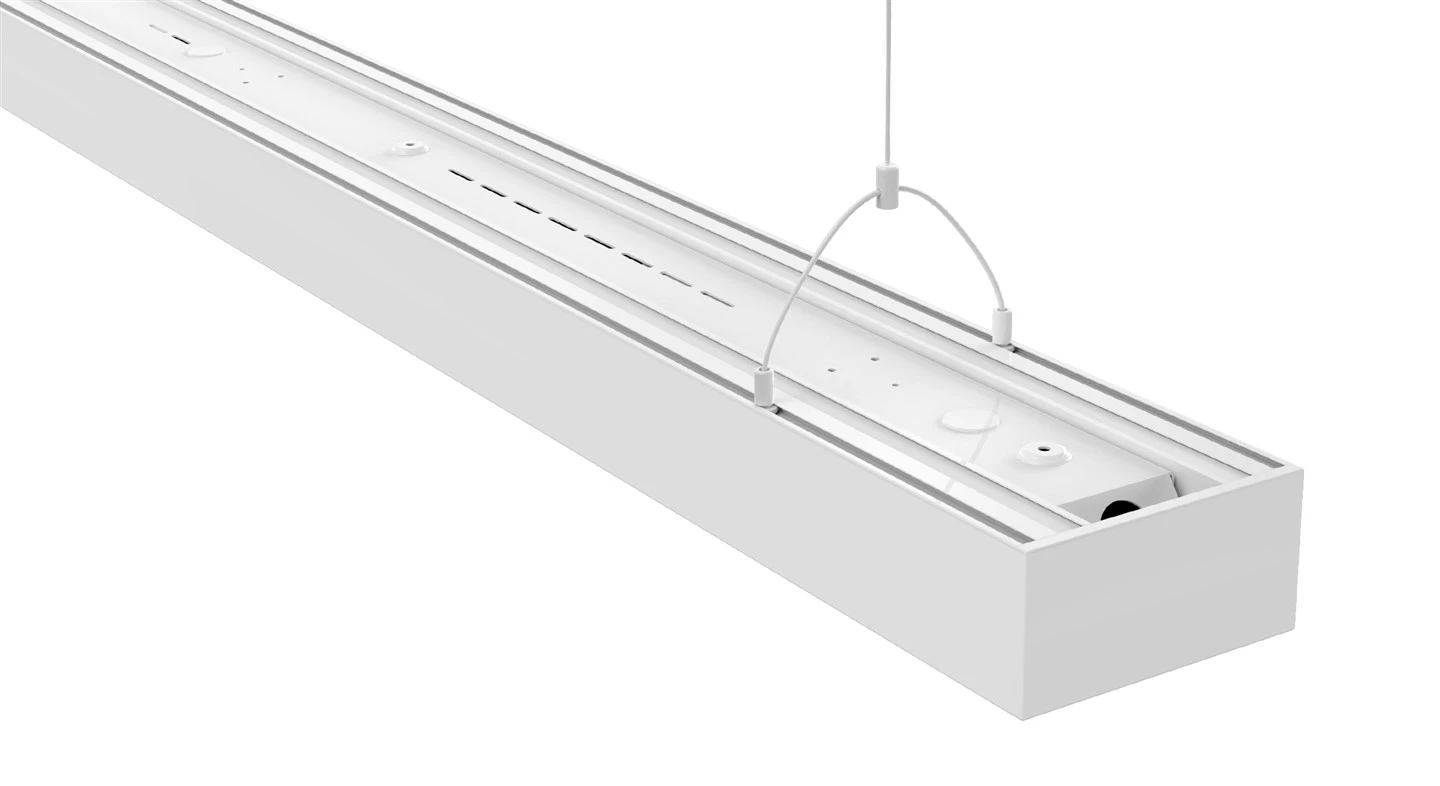

Brighton-Batten3

Brighton-Batten4

Brighton-Batten5

Opis:

Brighton battens rasvjetna tijela su najnoviji dizajn, koji ne samo da ispunjavaju optički UGR<19, but also use more costive design solution. Brighton battens lamp use the prismatic diffuser the optical material, and also use high-power LED and secondary lens as the light source. Brighton batten uses a back towed junction box for drivers and components installation,and also, the junction box acts as a installation box for the lighting unit. The Junction box can withstand up to four times weight of the lighting unit, which not only provides effective quality insurance, but also makes the product easy for installation.

Značajke:

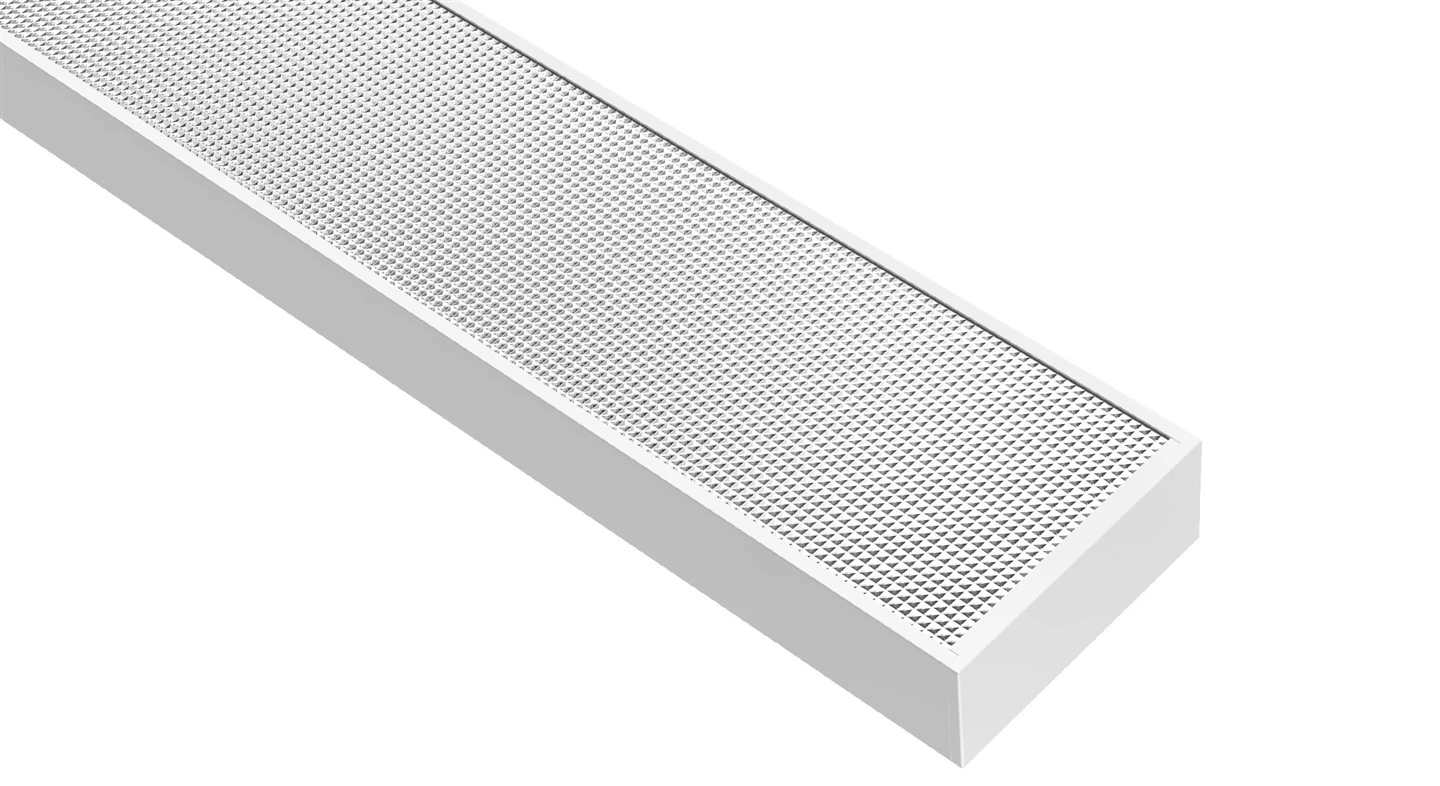

>UGR<19 with prismatic diffuser

>Napajanje i CCT prekidač na LED drajveru

>120 mm|Dostupne širine 150 mm

>Ra80 ili Ra90, SDCM<3

>UP svjetlo @ konstantna 2X4W kao opcija

>Krajnja ili stražnja besa za ulaz kabela

>Razne različite funkcije kao opcije

>Dostupne dimenzije 4ft / 5ft / 6ft

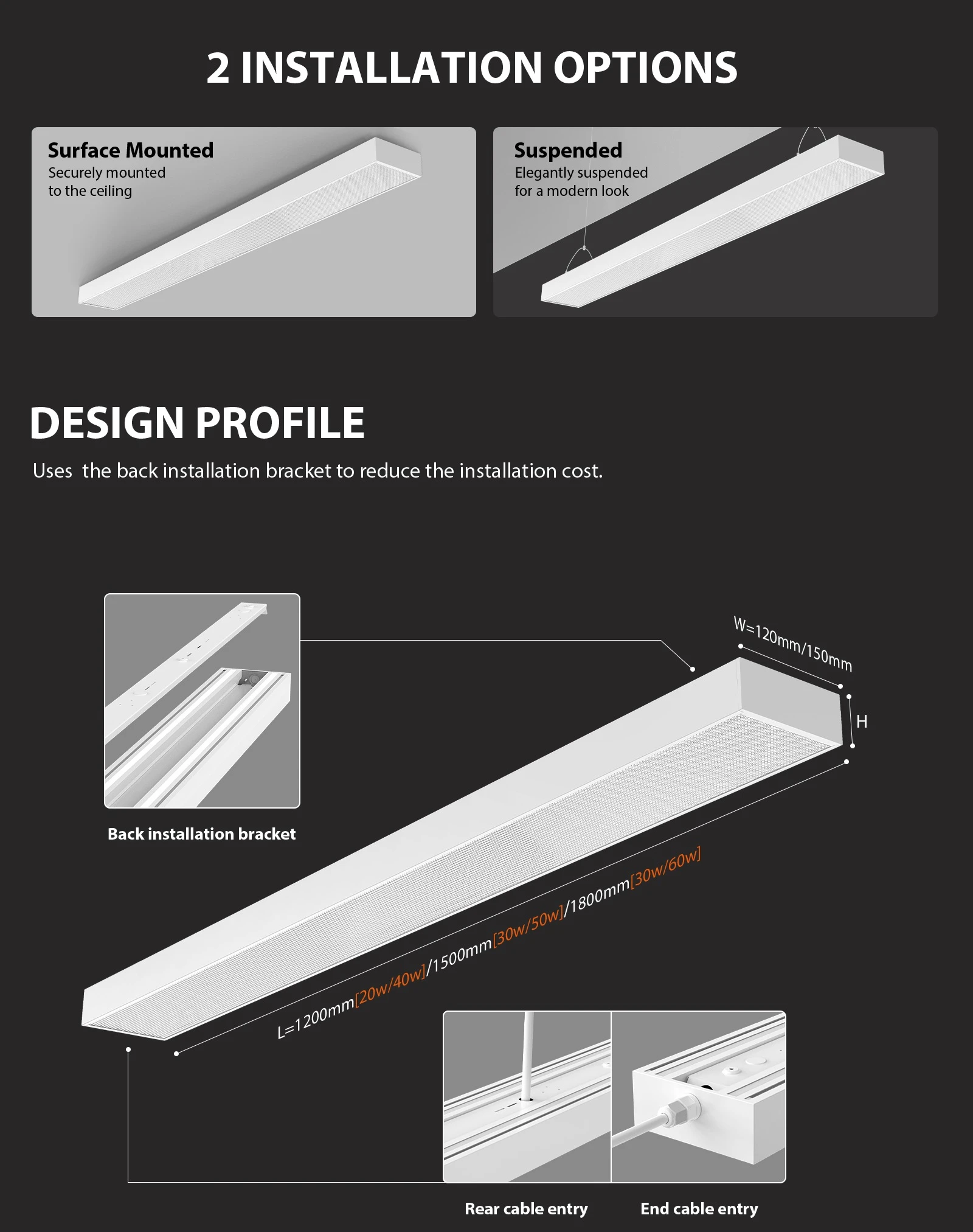

>Ugradbena / Nadgradna montaža / Montaža ovjesa

>5 godina jamstva

Send Inquiry

Download

Description

Technical Parameters

UVOD:

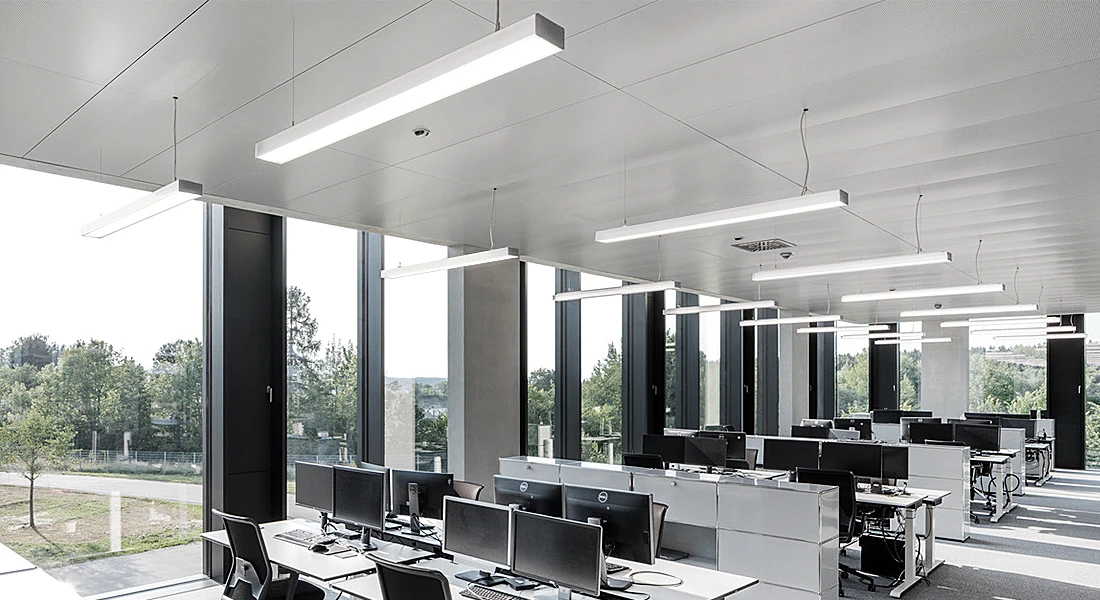

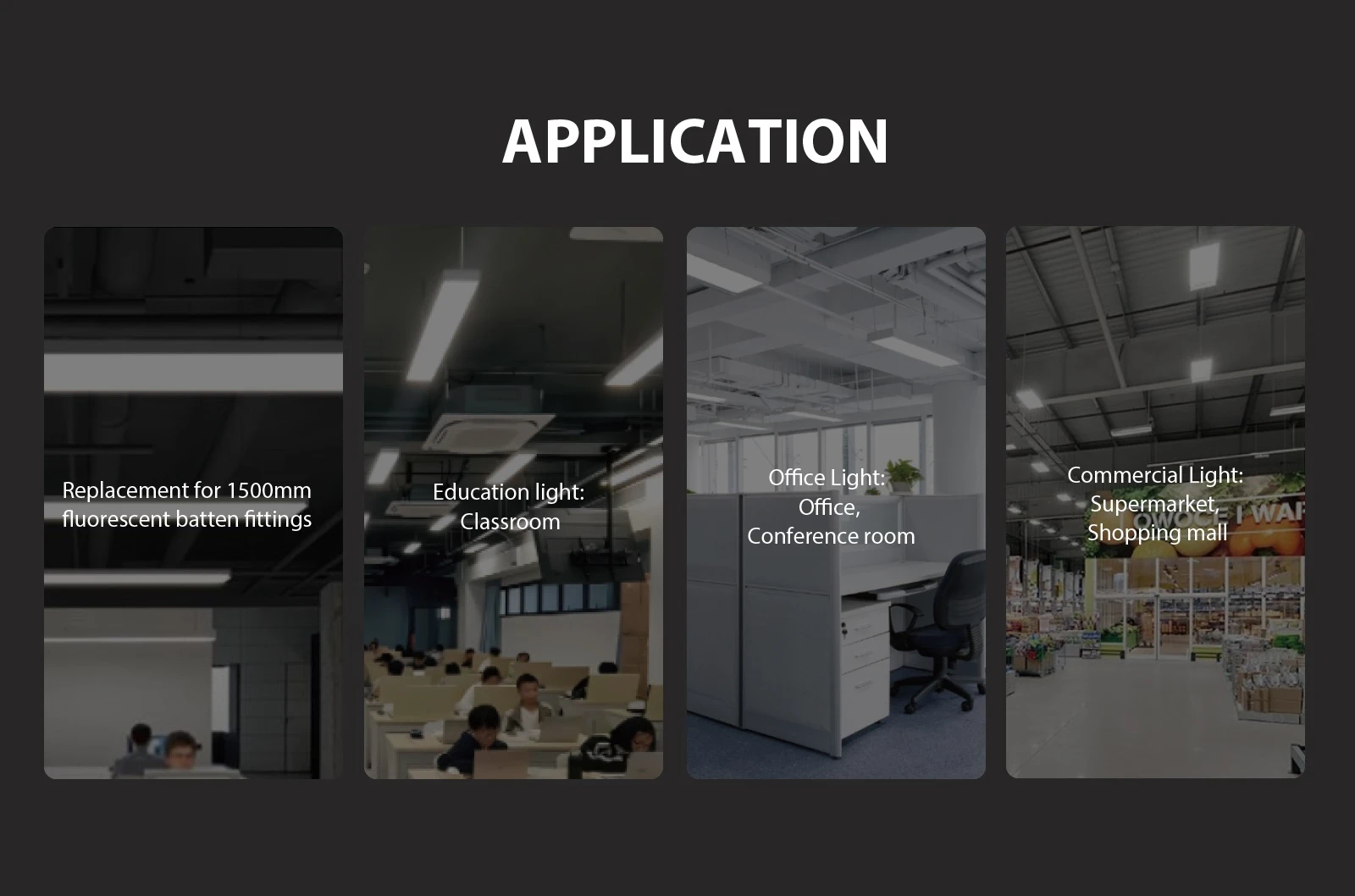

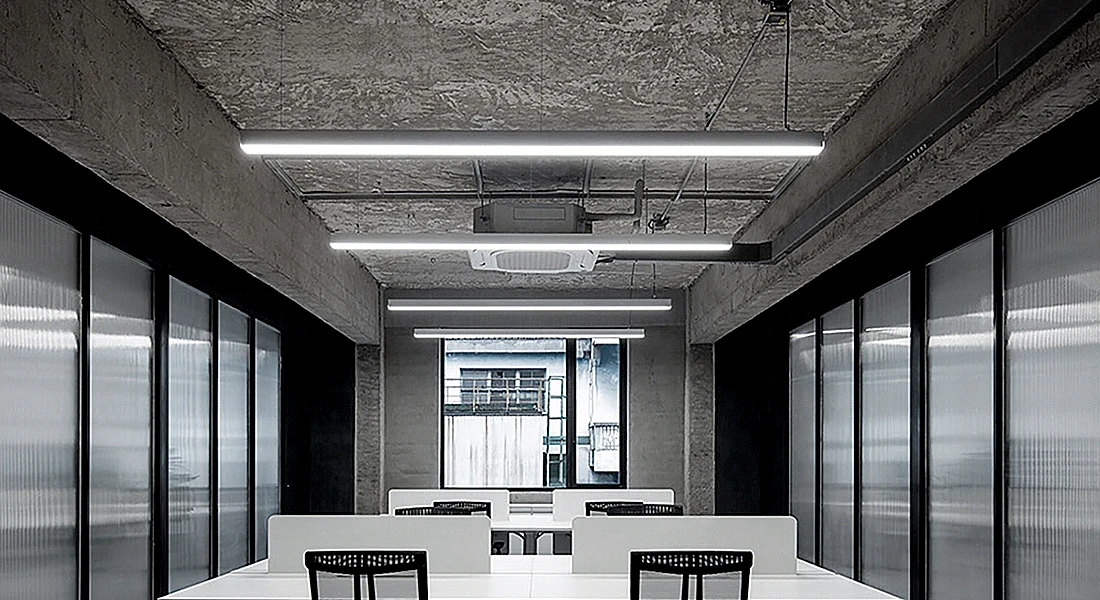

LED rasvjeta Brighton Batten nudi širine od 120 mm, 150 mm kao opcije, UGR<19, and wattage and CCT switches as standard features of strip lights. Brighton battens led light are widely used by customers in office, commercial, education, and other applications.

SVOJSTVO:

Brighton UGR Batten 150 mm naše je najnovije letvno svjetlo, projektirano za vrhunsku izvedbu i fleksibilnost. Sa širinom od 150 mm, ovo svjetlo se neprimjetno integrira u bilo koji prostor i ima niski odsjaj (UGR)<19. Its advanced LED driver features a power and CCT switch, allowing you to customize brightness and warmth to suit your needs. Our LED strip lights are perfect for a variety of applications, from office/commercial/industrial to campuses, blending technology with stylish design.

Šifra narudžbe	Širina	Nazivna snaga	LM/W	Lumen	SDCM/Ra	Watt/CCT Prekidač	Dimenzija proizvoda	GW/CTN	KOL./CTN
BT500-04W-DT1-40F01	120 mm	20W/40W	tip.130	tip.2600/5200	<3 / Ra80/90	Y	D1200xŠ120xV60	8,84 kg	4kom
BT500-05W-DT1-50F01	120 mm	30/50W	tip.130	tip.3900/6500	<3 / Ra80/90	Y	D1500xŠ120xV60	11,12 kg	4kom
BT500-06W-DT1-60F01	120 mm	30/60W	tip.130	tip.3900/7800	<3 / Ra80/90	Y	D1800xŠ120xV60	14,52 kg	4kom
BT510-04W-DT1-40F01	150 mm	20/40W	tip.130	tip.2600/5200	<3 / Ra80/90	Y	D1200xŠ150xV60	11,12 kg	4kom
BT510-05W-DT1-50F01	150 mm	25/50W	tip.130	tip.3900/6500	<3 / Ra80/90	Y	D1500xŠ150xV60	13,40 kg	4kom
BT510-06W-DT1-60F01	150 mm	30/60W	tip.130	tip.3900/7800	<3 / Ra80/90	Y	D1800xŠ150xV60	16,80 kg	4kom
